CUB™

Tilt

Contributions to health

  • The seat and back rest move together as one unit
  • Keeps hip angle the same
  • Reduces pressure on the pelvic area
  • Supports rest and digestion
  • Supports healthy posture, nutrition and blood circulation
  • No need to readjust body and head supports
  • Provides a way to change position without the risk of shear forces (forward sliding friction) damaging skin quality

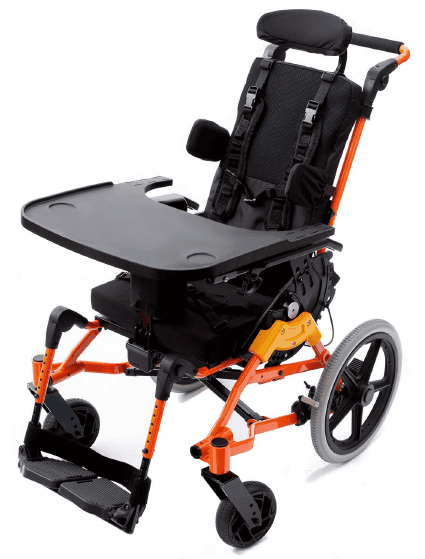

Introducing the Cub wheelchair
*5th wheel for use in all road conditions – not included

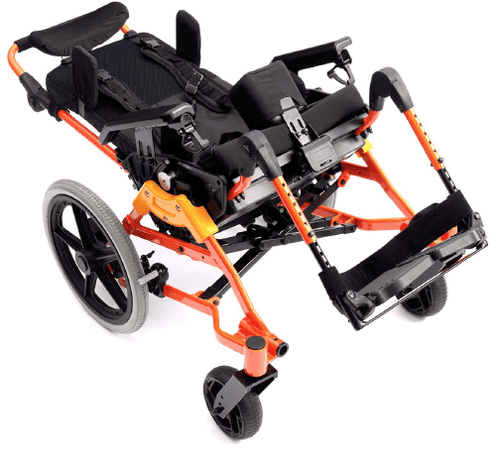

Reclining

  • Changes hip angle
  • Allows adjustment of body and head supports
  • Allows the user to lie on their back for sleeping or personal medical care
  • Provides pressure relief
  • Provides the rest needed by the head, neck and muscles resulting from sitting upright for a long time.

MEASUREMENTS

Seat Width Adjustment Range 19 – 37 cm
Seat Depth Adjustment Range 22,5 – 36 cm
Backrest Height Adjustment Range 29 – 56 cm
Knee-Heel Adjustment Range 14 – 35 cm
Reclining Angle Adjustment Range 75°, 82°, 90° (Vertical), 97°, 105°, 112°, 120°, 127°, 135°
Tilt Adjustment Angle Range – 9°, 0° (Horizontal), 9°, 18°, 27°, 36°, 45°
Rear Wheel Polyurethane Solid Rubber.
Solid Plastic Rim.
16×1.75″.
Front Wheel Polyurethane Solid Rubber.
Solid Plastic Rim.
15.2 × 7.5 cm
Maximum User Capacity 50 kg
Total Installed Width 67 cm
Total Installed Length 77cm
Assembly Time After Unboxing 3 minutes
Setting Time for Complex Situations 30 minutes
Seat Module Weight 10 kg
Chassis Module Weight 15 kg

Accessories

BLOCK TURN UP – TURN DOWN

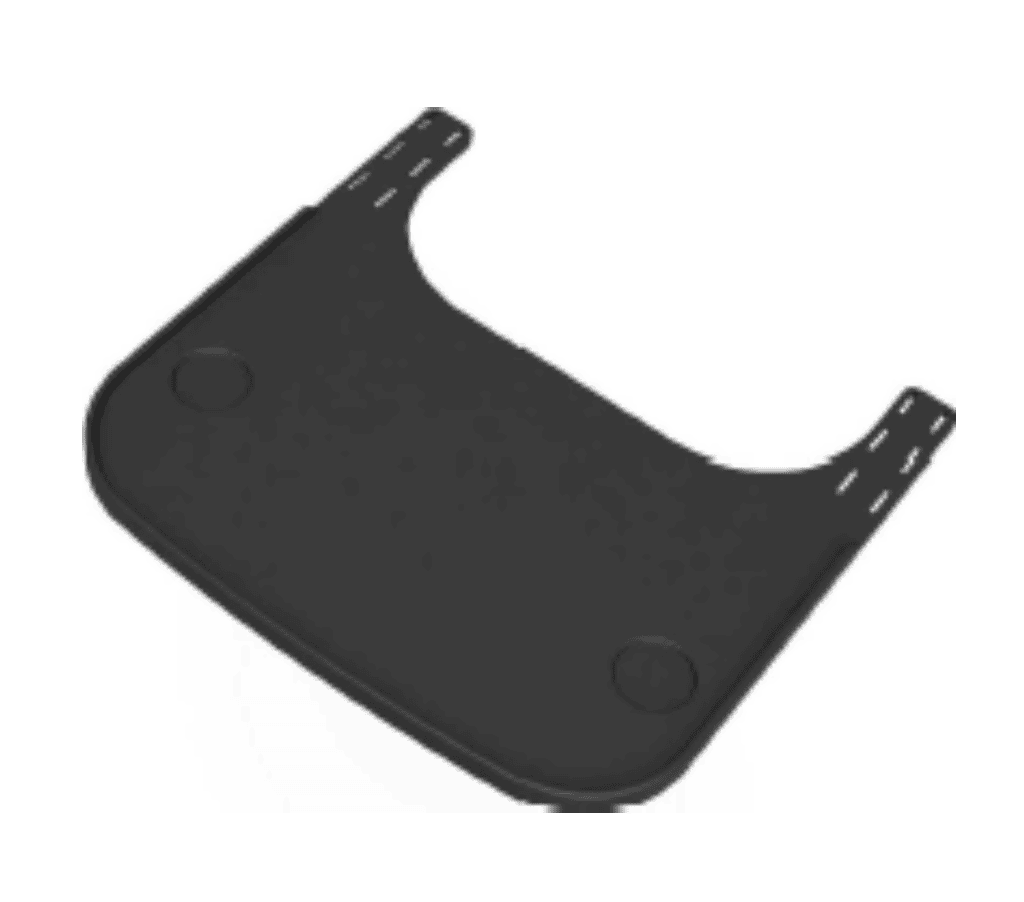

ACTIVITY TRAY

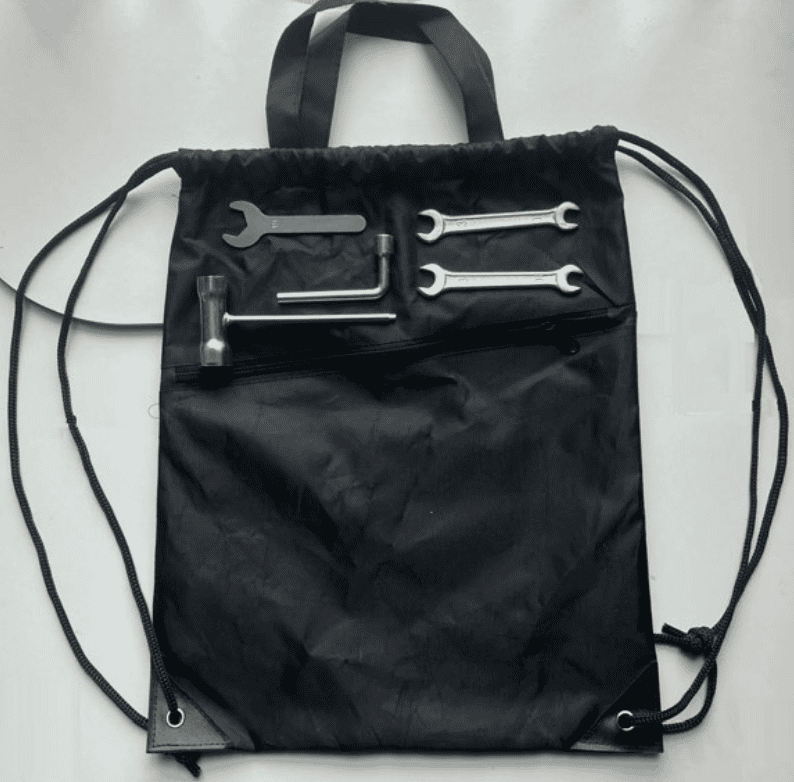

ADJUSTMENT TOOLS WITH BAG

Participant CUB
*24″ rear wheels shown not included

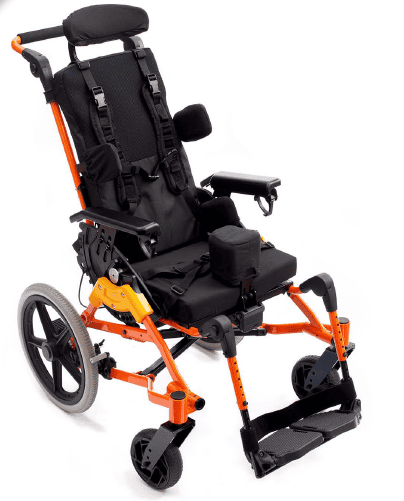

CUB™

Standard Color : Aegean Blue

Designed in the USA

A highly adjustable, durable, practical therapy chair designed to suit all environments, including all belts, bolsters, cushions, headrest and lap tray.

Specifications

Baz 10,1 kg 4-point chest belt included
Therapy tray included 4-point lap belt included

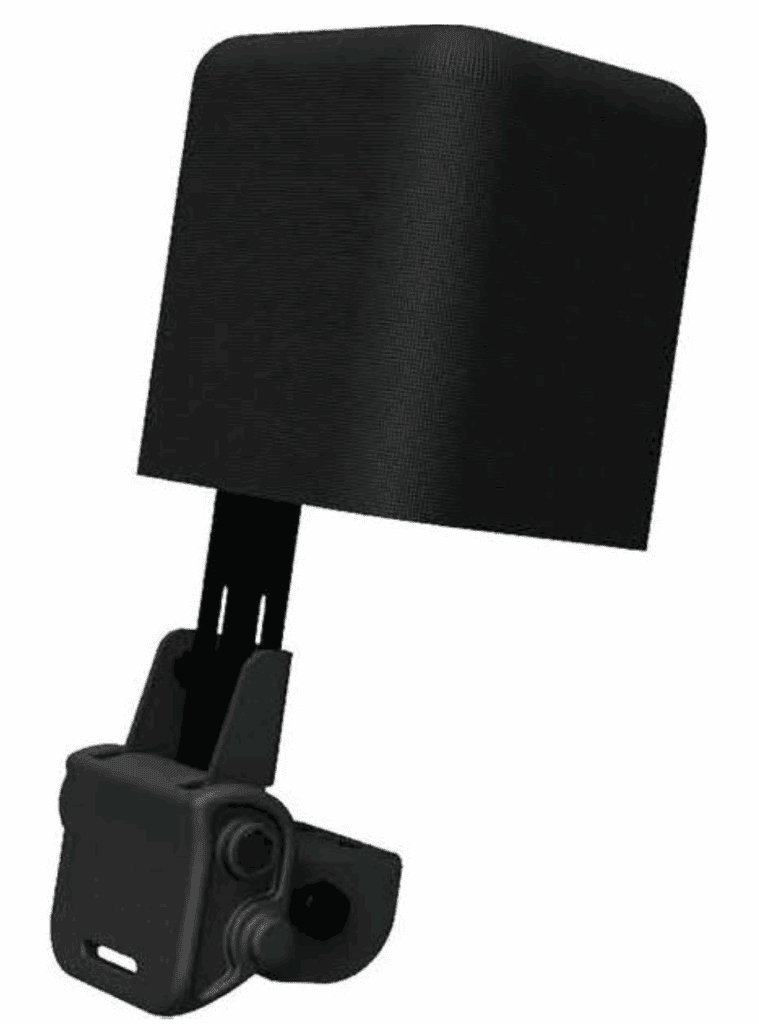

California di̇zayni 4-axis adjustable headrest included
Tilt with Reclining feature Suitable for use from 1 year old
Provides firm support during growth period Carrying capacity 60 kg
11 different “Tilt” recline positions Seat 13.3 kg
Includes lumbar and back supports that shape to prevent the development or progression of scoliosis.

CUB Settings

Tilt-in-space angle settings Knee extension angle
Reclining angle settings Abductor block: depth, height, width, angle settings
Footrest pallet: both height and angle adjustments Seat depth
Headrest: side, height, depth and rotation adjustments Back rest angle with seat
Backrest height Armrests: height and angle adjustments
Hip guide and torso supports Push bar height

Institutional

Cub assembly guide

Tuning video – bird’s eye view

Cub Clinical Overview and Adjustments

Sitting with back cushion settings

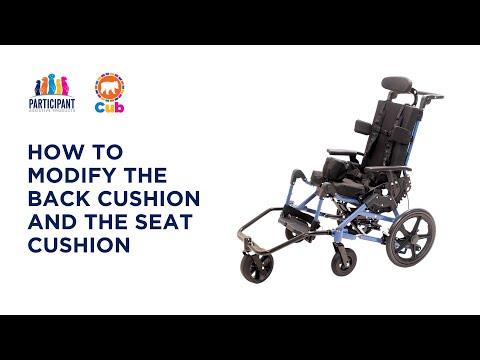

How to adjust the back and Seat cushions | Cub | 🔧

Rear wheel lock settings

Wheel Lock Adjustment | Cub | 🔧

Extending knee/foot distance

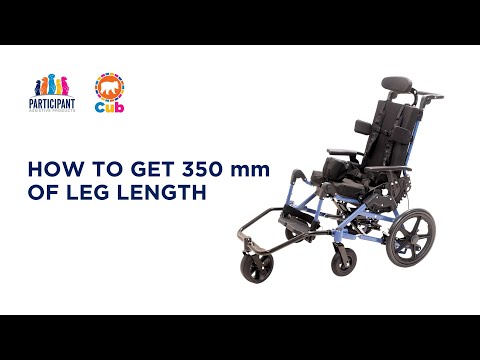

How to get 350 mm of leg length

CUB alternative rear wheels

Participant CUB

Abductor block adjustment

How to extend the range of the abductor | Cub | 🔧

Armrests installation

How to install Armrests

Hip guide angle adjustment

How to adjust the hip guide angle to align with the seat when the back is reclined | Cub | 🔧

Personalization

Cub Clinical Overview and Adjustments

Companion training

Caregiver training
